Sony ILME-FR7 Universal Zoom Servo Drive
Transform your Sony E-mount lenses with the Chrosziel FR7 Zoom Servo Drive CDM-SFR. Seamlessly integrate motorized zoom control into your workflow with this compact, universal drive, designed for easy attachment to the Sony FR7. Enjoy effortless setup with included cables and clamps—no extra power supply needed. Perfect for unleashing creative potential across a wide range of lenses.
- Universal Fit: Compatible with any zoom lens with mechanical zoom gear.
- Seamless Integration: Connects via Sony's VISCA protocol, fitting into the Sony FR7 ecosystem.
- Easy Setup: Includes all cables and clamps—no additional power supply required.
- Compact Design: Attaches easily to 15mm rods on the Sony FR7 PTZ head.
Product Information
Product Overview

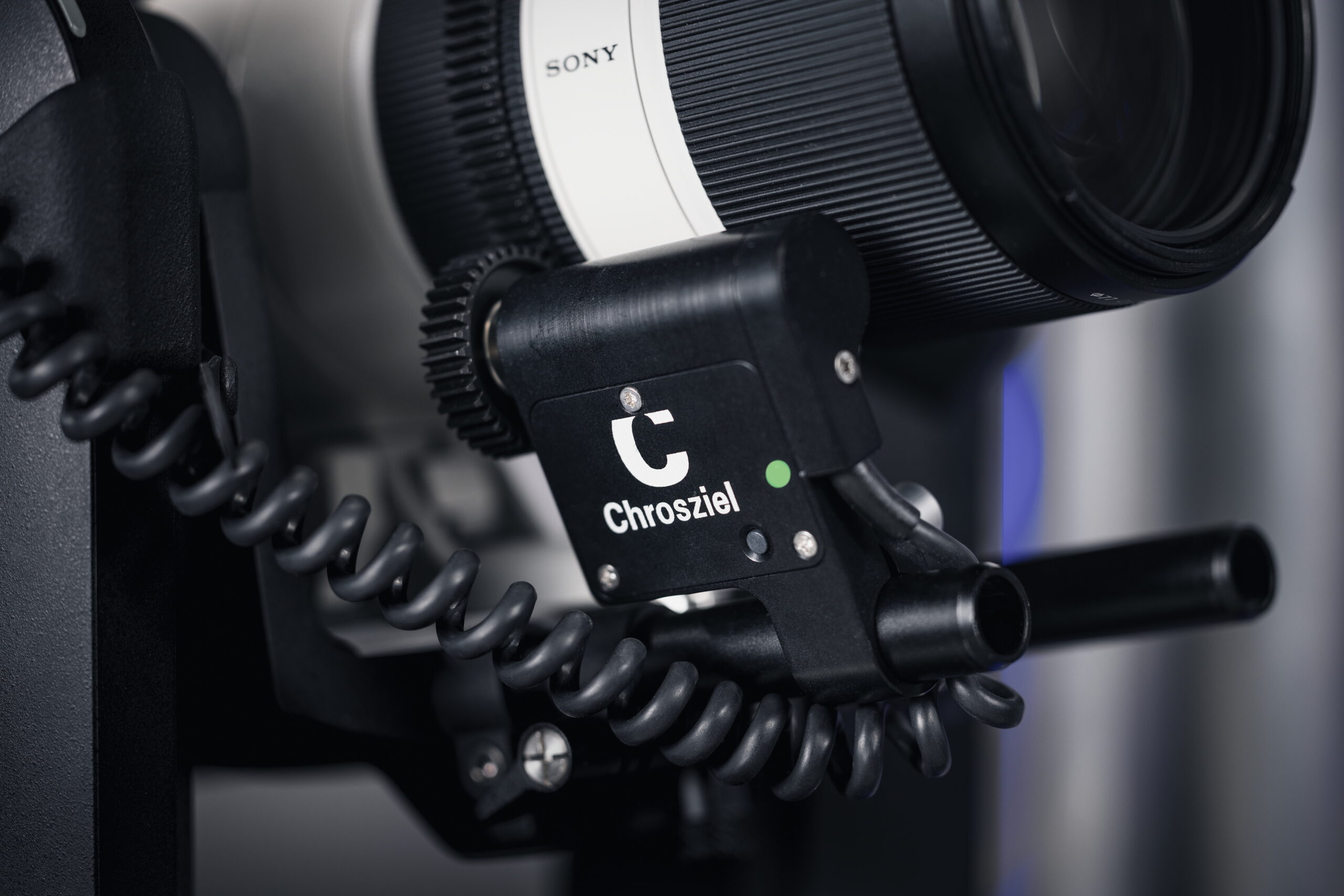

Installation is fast and secure: the motor mounts to 15 mm rods below the lens, with cable clamps attaching to the FR7’s pan axis. All necessary control and power data are transmitted via the camera’s RJ45 “Option” port – eliminating the need for external controllers or power bricks.

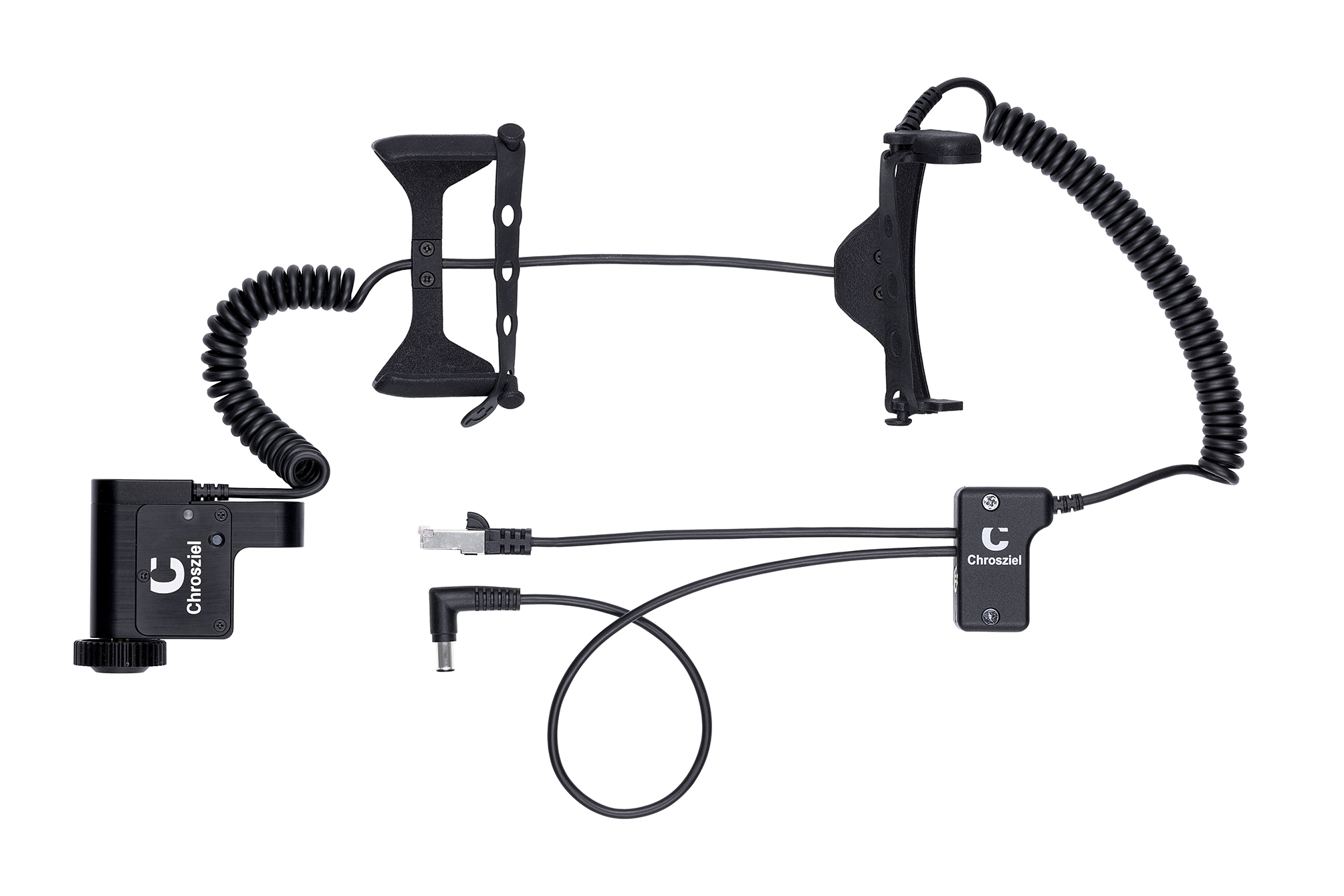

The system comes preconfigured with Chrosziel FlexiGearRing, rubber lens straps, cable routing hardware, and multiple snap-on gear wheels. A dedicated initialization button and visual LED status indicators make setup effortless, even in high-pressure shooting environments. Compatible lenses include a wide range of Sony models such as SEL2470GM, SEL70200GM II, SEL1224G, and more
Technical Specifications
Specification
Details
Product Name
CDM-SFR
Camera Compatibility
Sony ILME-FR7 (via 'Option" port — RJ45)
Lens Compatibility
Sony E-mount still zoom lenses incl. G, (GM, GM II, ZEISS
Mounting
15 mm lightweight support rod: FlextGearRing for lens
Gear Interfaces

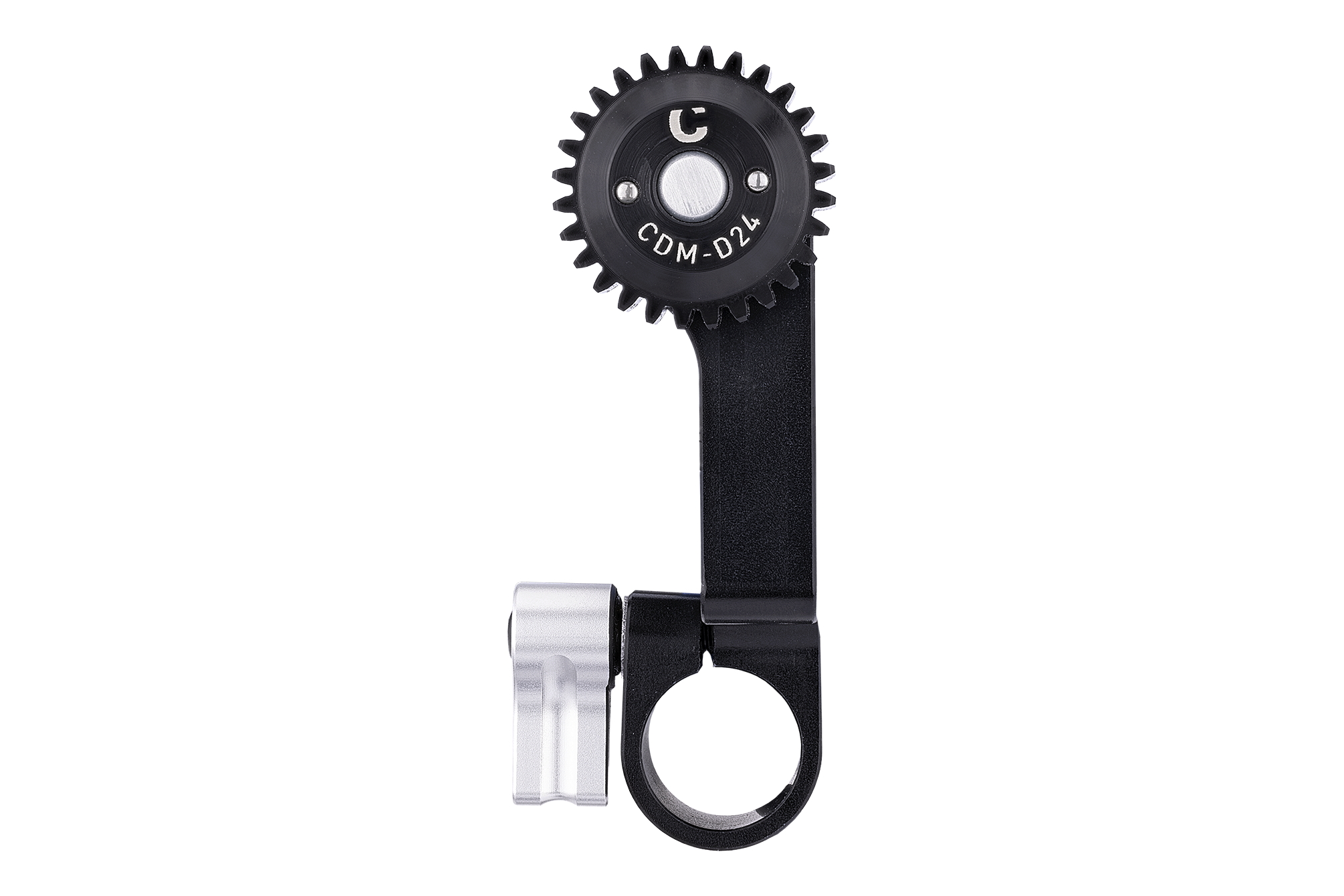

Snap-on gears: 24 mm, 30 mm, 40 mm; module 0.8
Initialization
Auto via camera, or manual via onboard button
Status Indicator

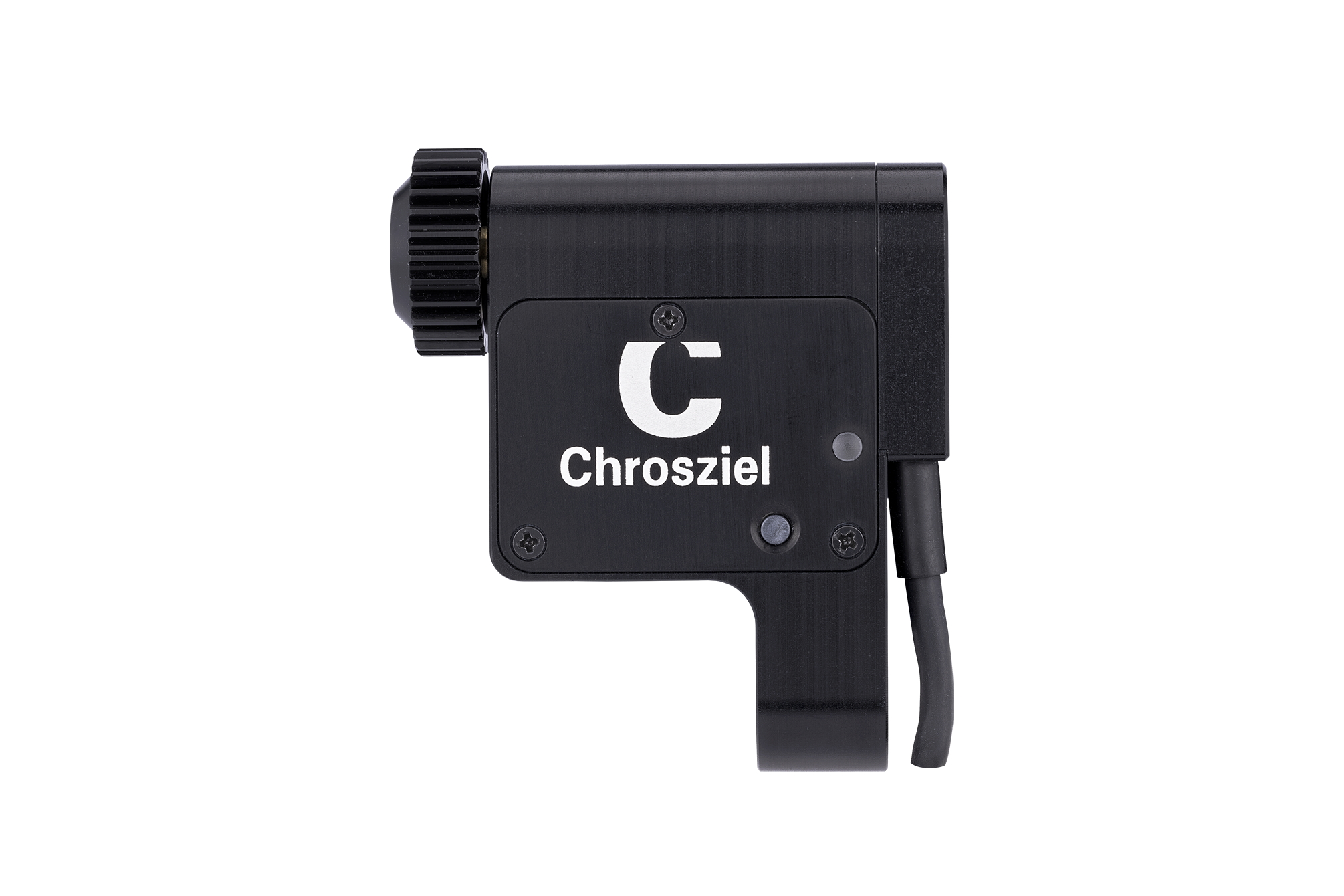

LED (slow flash: inactive. fast: initializing, green: ready)
Cable Integration
Includes distribution box, coiled cable, RJ45 data/power
Installation Time
~5-10 minutes
External Power Required
No (powered via camera)
Remote Control Integration
Compatible with Sony RM-IP500 and Web GIJI Zoom Control
Environmental Use
Studio, OB Van, Remote Prduction
