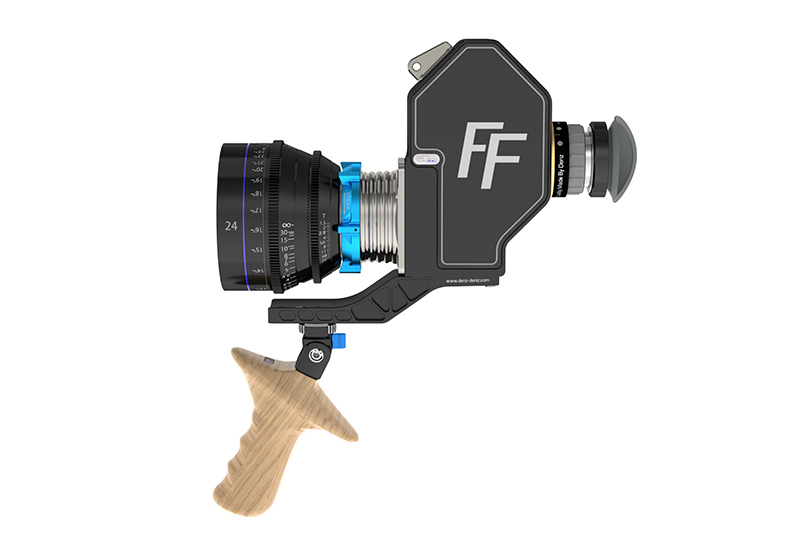

Director's Viewfinder OIC FF
Experience unparalleled realism on set with the OIC FF Full-Frame Director’s Viewfinder. Designed for full-frame cinema lenses, it offers seamless switching between anamorphic and spherical views with customizable de-squeeze factors. Whether you’re blocking a scene, rehearsing movement, or aligning creative intent, this handcrafted viewfinder helps directors and cinematographers frame exactly what the lens sees.
Engineered with modular flexibility, the OIC FF supports PL, LPL, and SP70 mounts and accommodates multiple anamorphic squeeze factors. Its precision-ground optics, diopter-adjustable eyepiece, and interchangeable format screens provide an uncompromising view of your creative canvas.
- Versatile Design: Compatible with user-selectable desqueeze modules: 1.3x, 1.5x, 1.8x or 2.0x — ready for any creative vision.
- Full Frame Compatibility: Designed to support all modern large-format cinema lenses, with accurate ground-glass framing for popular sensor formats and aspect ratios.
- Customizable Mounts and Glasses: Includes options for lens mounts and ground glasses to match camera setups.
- Ergonomic Handling: Features a cherry wood handgrip with soft-touch coating and a fully mechanical build made from precision-machined alloy.
Product Information
Product Overview

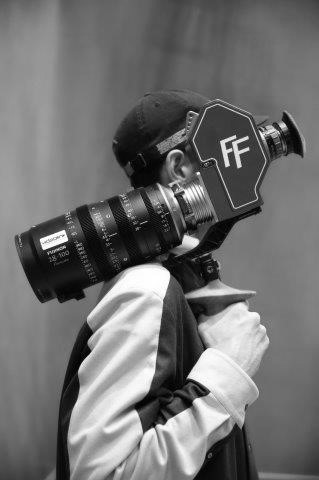

Designed with usability in mind, the viewfinder includes a ±4.0 diopter adjustment, 1/4″-20 thread for monopod support, and an adjustable eye cup for comfort. The integrated rotating handgrip allows low-angle positioning and easy handling during location work.
Whether you’re scouting, rehearsing, or composing on the fly — the OIC FF gives you total control over your frame, no batteries required.
Technical Specifications
Specification
Details
Lens Mount Compatibility
PL, LPL, SP70 (interchangeable)
Supported Formats
LF 16:9, LF Open Gate, 2.39:1 (via format screen)
Anamorphic Support
Desqueeze 1.3x, 1.5x. 1.8x, 2.0 (via interchangeable module)
Diopter Adjustrnent
±4.0
Eyepiece
Optical, rubber cup included
Handgrip
Cherry wood with soft-touch coating, rotatable
Thread Mount
1/4"-20 (for monopod support)
Materials
CNC-machined aluminum, wood
Weight
Not specified
